In addition to developing testing systems, TestHouse Enko also offers a variety measurement services that can be tailored according to customers’ needs: EMC testing, RF performance testing, RF interoperability & coexistence testing, antenna testing, as well as environmental, mechanical and audio testing. Measurement services are primarily implemented at Enko’s facilities in Salo, Finland.

Testing facility and service

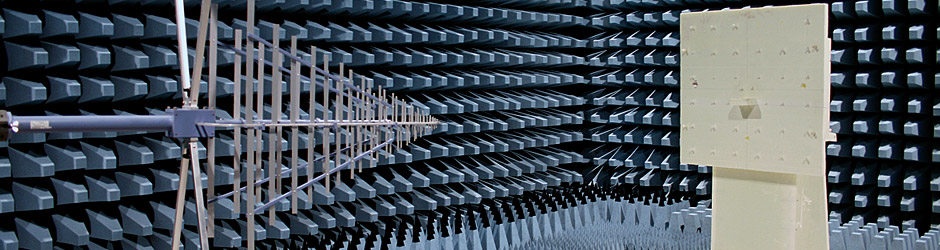

TestHouse Enko is an EN ISO/IEC 17025 certified testing laboratory. Enko’s EMC laboratory includes a calibrated Anechoic chamber (7m × 6m × 6m, @ 30MHz to 18GHz) with 3 meter antenna measurement systems and turntable antenna mast up to 4 meters

EMC

ESD (EN 61000-4-2)
Radiated RF Immunity
    (EN 61000-4-3, 2004/104/EY)
Fast transients (EN 61000-4-4)
Surge immunity (EN 61000-4-5)
Conductive RF immunity
   (EN 61000-4-6)
Voltage dips and interrupts
   (EN 61000-4-11)
Radiated emissions
   (EN 55022, EN55011)
Conducted emissions
   (EN 55022, EN55011)
Radiated spurious emissions
   (ETS 300 607-1)
TX harmonics (ETS 300 607-1)
VCO leakage (ETS 300 607-1)

RF performance, interoperability and coexistence

GSM 850, 900, 1800, 1900
GPRS 850, 900, 1800, 1900
EGPRS 850, 900, 1800, 1900
WCDMA FDD1-FDD8
HSDPA FDD1-FDD8
HSUPA FDD1-FDD8
BLUETOOTH, EDR
WLAN 802.11b, 802.11g
